Bottom nav

The phone's primary navigation. Covers bottom-nav and bottom-nav-item.

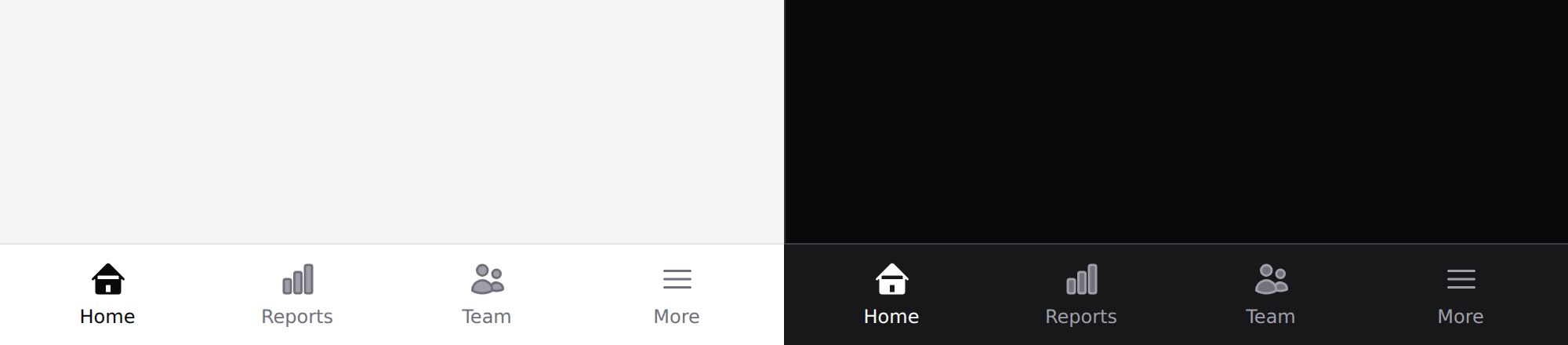

Bottom nav

Fixed to the bottom below the lg breakpoint, hidden above it — where the sidebar takes over.

Use it

<x-ds::bottom-nav>
    <x-ds::bottom-nav-item href="/" label="Home" :active="request()->is('/')">
        <x-slot:icon><x-ds::icon name="home" size="6" /></x-slot:icon>
    </x-ds::bottom-nav-item>

    <x-ds::bottom-nav-item href="/reports" label="Reports">
        <x-slot:icon><x-ds::icon name="chart-bar" size="6" /></x-slot:icon>
    </x-ds::bottom-nav-item>

    {{-- no href: a button, because it opens a sheet rather than navigating --}}
    <x-ds::bottom-nav-item label="More" @click="moreOpen = true">
        <x-slot:icon><x-ds::icon name="bars-3" size="6" /></x-slot:icon>
    </x-ds::bottom-nav-item>
</x-ds::bottom-nav>

Props

ComponentPropDefaultWhat it does
bottom-navhiddenfalseHides the bar entirely.
bottom-nav-itemlabelrequiredAlways visible.
bottom-nav-itemhref—Renders <a>; without it, <button>.
bottom-nav-itemactivefalseSets aria-current="page".

Plus an icon slot on the item.

Your page must reserve room

A fixed bar cannot push content, so the bar sits over whatever is behind it. Pad your content area by the bar's height:

<main class="pb-16 lg:pb-0">…</main>

Padding, not margin — a margin on the last child collapses and the final row of every scrolling list ends up behind the bar.

The component cannot do this for you: it does not know what it is fixed over.

Five items, maximum

Below five the targets are comfortable; above five they are not. The fifth should be a "More" button that opens a sheet.

Notch safety

The bar carries safe-area-bottom, which pads for the home indicator on a notched phone. Without it the last few pixels of every tab are untappable while the tabs look completely normal.

Don't

  • Don't put an action in it. It is navigation. A create action belongs in the FAB — <x-ds::button size="fab"> — which overlaps the bar rather than sitting in it.
  • Don't show it above lg. The sidebar owns that breakpoint.
  • Don't nest it inside a container with a transform. A transform ancestor becomes the containing block for fixed, and the bar scrolls away with the content.

More in specs/bottom-nav.md.
